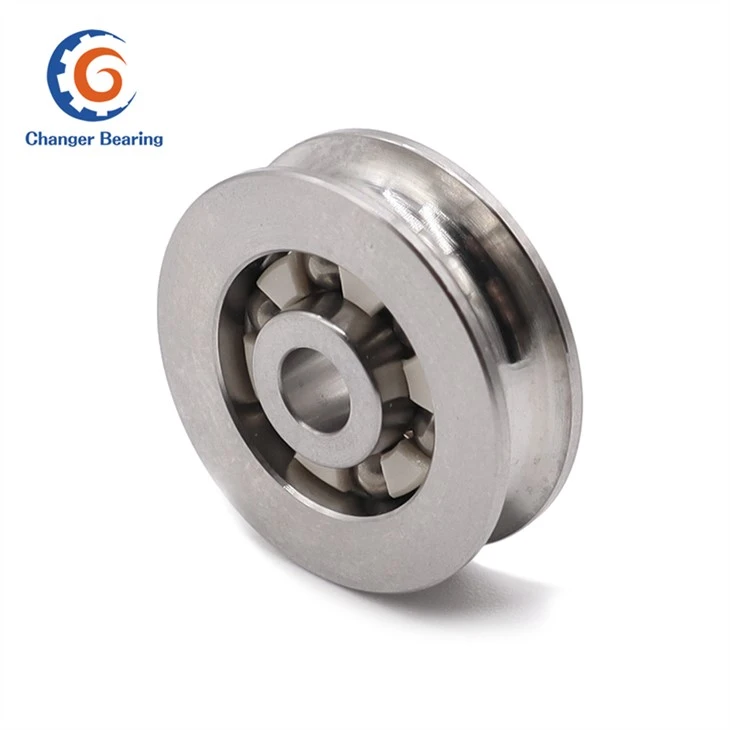

Custom U-Shape Wheel Bearing – Titanium Ball Bearing Wheel

Custom U-Shape Wheel Bearing with Titanium Ball Bearing Components, designed for specialized wheels, guide systems, rollers and OEM mechanical assemblies.

This U-Shape Wheel Bearing is a customized wheel bearing solution developed for applications where a standard deep groove bearing cannot provide the required wheel profile, mounting structure or material specification.

The bearing features a U-shaped wheel / groove profile and can be manufactured with titanium components according to the customer's application requirements. The wheel diameter, groove geometry, bearing structure, axle/bore size, material and other specifications can be customized.

Designed for OEM and special-purpose equipment, this wheel bearing can be supplied according to engineering drawings, CAD files, existing samples or application requirements.

Whether you need a titanium wheel bearing for a compact guide system, custom roller assembly, precision equipment or specialized machinery, we can evaluate the design and manufacture the bearing around your actual installation requirements.

Key Features

• Titanium material option for specialized bearing and wheel applications
• Custom U-shaped wheel / groove profile
• Integrated wheel and bearing structure
• Custom bore, axle and mounting dimensions
• Custom wheel diameter and width
• Groove width, depth and radius can be customized
• Suitable for OEM and application-specific designs
• Available based on drawings, samples or technical specifications
• Prototype, small-batch and volume production available
• Material and inspection requirements can be discussed before production

Product Specifications

Note: This is a customized wheel bearing product. Final dimensions, titanium grade, bearing configuration and load/speed specifications should be confirmed according to the customer's drawing and application.

Titanium U-Shape Wheel Bearing

Why Titanium?

Titanium is selected for specialized applications where a combination of low density, high specific strength and corrosion resistance is important.

Compared with conventional steel materials, titanium can provide a significant weight advantage. This can be useful in equipment where the weight of moving components needs to be controlled.

Depending on the selected titanium grade, application requirements and bearing structure, titanium can be considered for:

• Lightweight mechanical assemblies
• Aerospace-related equipment
• Robotics and automation
• Precision machinery
• Special-purpose rollers
• Corrosion-sensitive environments
• Custom wheel mechanisms
• High-performance OEM equipment

The exact titanium grade should be selected according to the application.

Titanium Grade 2, Grade 5 (Ti-6Al-4V), or another specified titanium alloy can be discussed depending on the component and performance requirements.

For OEM projects, customers can specify the required material grade on the drawing or purchase specification.

Custom U-Shape Wheel Design

The most important feature of this product is not simply the bearing itself, but the custom wheel profile surrounding the bearing.

The U-shaped groove can be designed to work with a corresponding:

• Rail
• Track
• Guide rod
• Cable
• Wire
• Tube
• Edge
• Roller surface
• Custom guide structure

The groove geometry can be adjusted according to the mating component.

Custom Wheel Bearing for OEM Applications

A standard bearing is usually designed to support a rotating shaft.

A wheel bearing, however, may need to perform additional functions:

Support the load + rotate smoothly + guide along a track + maintain the required position.

This is why standard bearings are not always suitable for specialized equipment.

Our custom U-shape wheel bearings can be developed according to the actual mechanical structure.

You can specify:

• Wheel size
• Bearing size
• Axle size
• U-groove dimensions
• Titanium material
• Bearing clearance
• Sealing
• Lubrication
• Surface treatment
• Required quantity

Applications

Custom U-shape titanium wheel bearings can be considered for a wide range of specialized mechanical systems.

Typical applications include:

Automation equipment

Robotics

Guide rail systems

Linear movement systems

Conveyor equipment

Sliding mechanisms

Custom rollers

Precision machinery

Aerospace-related equipment

Laboratory equipment

Special-purpose machinery

OEM mechanical assemblies

The appropriate wheel bearing should be selected based on the actual load, speed, track geometry, operating environment and required service life.

Send us your drawing or sample. We can review the required structure before production.

Quality Control

For customized wheel bearings, dimensional accuracy is particularly important because the wheel profile needs to match the mating track or guide.

Depending on the project requirements, inspection can include:

Wheel outside diameter

Bore diameter

Overall width

Groove width

Groove depth

Groove radius

Axle dimensions

Radial clearance

Rotation condition

Surface finish

Material verification

Visual inspection

Assembly inspection

For OEM projects requiring specific inspection reports or material documentation, the requirements can be confirmed before production.

1. Can you customize the U-shape wheel bearing according to our drawing?

Yes. We can manufacture the wheel bearing according to a 2D drawing, 3D CAD file, physical sample or detailed dimensions.

The wheel diameter, groove profile, bore, axle and bearing configuration can be customized.

2. Can the wheel be made from titanium?

Yes. Titanium material can be used for customized wheel bearing components, depending on the design and application.

Please specify the required titanium grade if you have a material requirement.

3. Which titanium grade do you recommend?

The appropriate grade depends on the application.

Grade 2 is often considered where corrosion resistance and relatively low weight are important, while Grade 5 Ti-6Al-4V is commonly selected for higher-strength applications.

For a complete bearing assembly, material selection should also consider wear, load, speed and mating surfaces.

4. Can you make a U-shaped groove to match our rail?

Yes. The groove width, depth, radius and position can be customized according to the mating rail or guide.

Providing the rail dimensions or a drawing will allow us to design the wheel more accurately.

5. Can you customize the wheel diameter?

Yes. Wheel diameter, width and overall dimensions can be customized.

6. Can the axle or bore be customized?

Yes. The bore and axle configuration can be customized, including special lengths, steps, threads or mounting structures.

7. Is this a standard catalog bearing?

This product is intended primarily as a custom OEM wheel bearing. The exact structure can be developed according to the customer's requirements.

8. Can you produce a sample before mass production?

Yes. Prototype or sample production can be arranged for new OEM designs.

9. Can you make small quantities?

Prototype and small-batch orders can be discussed. MOQ depends on the titanium material, wheel structure, machining requirements and production quantity.

10. Can you customize the bearing material as well as the wheel material?

Yes. Different components can be evaluated separately depending on the design. If the wheel requires titanium but the rolling bearing requires another bearing material, this can be discussed during engineering review.

11. What information should I provide for a quotation?

The most useful information is:

Wheel diameter + wheel width + U-groove dimensions + bore/axle size + titanium grade + quantity + drawing/sample + application.

If you do not have a complete drawing, send us the dimensions you already know and we can review the remaining requirements.

Request a Custom Titanium Wheel Bearing Quote

Looking for a U-shaped wheel bearing that is not available as a standard catalog product?

Send us your drawing, CAD file, sample or basic dimensions.

We can review the design for a custom titanium U-shape wheel bearing, including the wheel profile, bearing structure, axle/bore dimensions and material requirements.

Custom Titanium · U-Shape Wheel Bearing · OEM / ODM · Prototype · Volume Production

Tell us what you need to build, and we will review the bearing design around your application.
