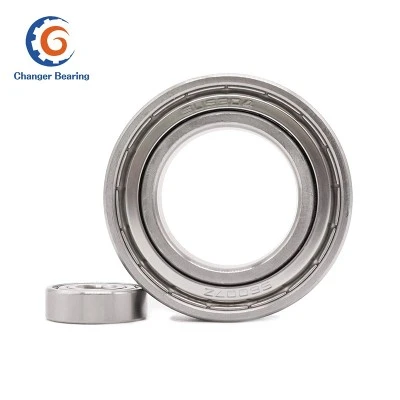

Custom SUS304 stainless steel 6007Z deep groove ball bearing with a 35 mm bore, 62 mm outside diameter and 14 mm width. Designed for OEM equipment, corrosion-sensitive applications and custom industrial assemblies.

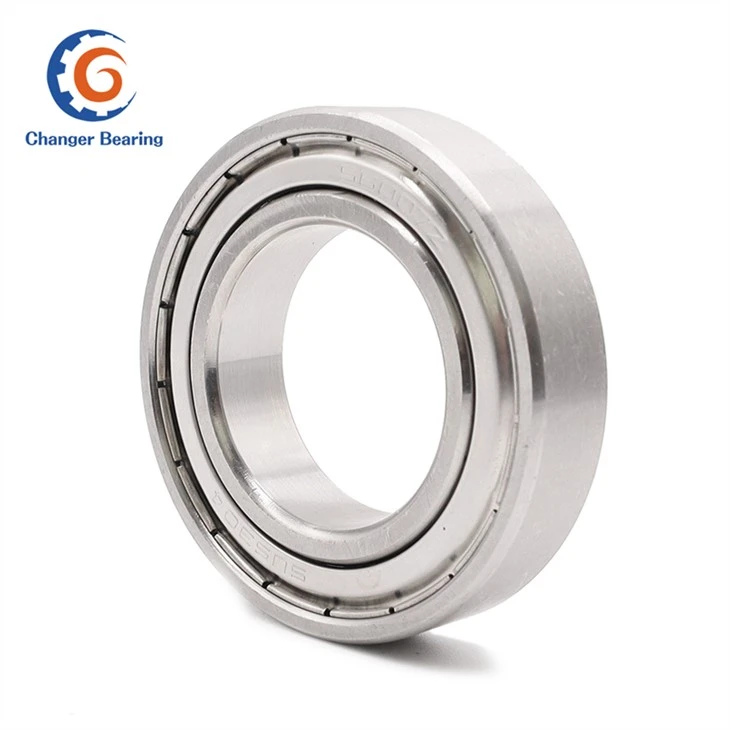

The SUS304 Stainless Steel 6007Z Ball Bearing is a single-row deep groove ball bearing designed for applications requiring a stainless steel construction and a shielded bearing configuration.

With a standard 35 × 62 × 14 mm size, the 6007 bearing is widely used in industrial machinery and rotating equipment. The Z configuration uses a metal shield on one side, helping reduce the entry of dust and foreign particles while maintaining a relatively simple bearing structure.

For OEM applications, we can also discuss customized requirements such as material specification, internal clearance, lubrication, cage configuration, precision class and packaging.

Key Features

• SUS304 stainless steel material
• 6000 series deep groove ball bearing
• Standard 35 mm bore × 62 mm OD × 14 mm width
• Z single metal shield configuration
• Suitable for radial loads and moderate axial loads
• Corrosion-resistant stainless steel construction
• Smooth rotation and low-maintenance design
• Available for OEM and customized applications
• Custom clearance, lubrication and other specifications available
• Suitable for prototype, small-batch and volume production

Product Specifications

The basic dimensions of 6007 are 35 mm bore, 62 mm outside diameter and 14 mm width. These dimensions are also listed by NSK, NTN/SNR and Koyo for their corresponding 6007 configurations.

Why Choose a SUS304 6007Z Bearing?

A standard 6007 bearing is readily available in conventional bearing steel. However, some equipment requires a different material because of the operating environment.

The SUS304 version is intended for buyers who need the familiar 6007 bearing envelope while specifying a stainless steel construction.

This can be useful when:

The bearing dimensions are already fixed

You can retain the 35 × 62 × 14 mm installation dimensions instead of redesigning the surrounding housing.

Corrosion resistance is an important consideration

Stainless steel can be more appropriate than conventional bearing steel in moisture-exposed or cleaning-sensitive environments.

You need an OEM supply rather than a generic catalog item

Material, clearance, lubrication, packaging and inspection requirements can be discussed according to the project.

SUS304 6007Z for OEM Applications

This bearing can be used in a range of industrial and OEM equipment where the 6007 mounting dimensions are required.

Typical applications may include:

Automation equipment

Conveyor systems

Packaging machinery

Food processing equipment

Pumps

Fans and blowers

Electric motors

Small industrial machinery

Laboratory equipment

Custom mechanical assemblies

Stainless steel machinery

OEM replacement parts

The actual bearing configuration should be selected according to load, speed, temperature, contamination, lubrication and required service life.

Quality Control for OEM Orders

For OEM customers, consistent dimensions and bearing performance are important for repeat production.

Inspection requirements can be discussed before production and may include:

Bore diameter

Outside diameter

Bearing width

Radial internal clearance

Shield installation

Rotation condition

Appearance

Material specification

Lubrication

Packaging

Batch identification

For projects requiring specific inspection documentation, please provide your quality requirements together with the RFQ.

Customization for Different Applications

If the standard SUS304 6007Z configuration is close to your requirement but not exactly what you need, we can evaluate modifications.

For example:

Need a different clearance?

CN, C3 or other clearance requirements can be discussed according to the application.

Need protection on both sides?

A double-shielded configuration such as 6007ZZ / 6007-2Z may be considered.

Need a different lubricant?

Grease selection can be discussed according to temperature, speed and operating environment.

Need a special cage?

Cage material and configuration can be evaluated for specific OEM applications.

Need a complete custom bearing?

Send us your drawing or sample. We can review the required structure before production.

1. What are the dimensions of the 6007Z bearing?

The standard 6007 bearing has a 35 mm bore, 62 mm outside diameter and 14 mm width.

2. What does the "Z" mean in 6007Z?

Z generally indicates a single metal shield on one side of the bearing. For a double-shielded version, 6007ZZ or 6007-2Z is commonly used depending on the manufacturer's designation.

3. Is the 6007Z made from SUS304 stainless steel?

This product is specified as a SUS304 stainless steel 6007Z bearing. The exact material specification can be confirmed according to your purchase requirements and documentation needs.

4. Is SUS304 the same as 440C stainless steel used in stainless steel bearings?

No. They are different stainless steel materials and have different material properties.

For example, some commercially available stainless steel bearings use 440C stainless steel for the rings and balls, while this product is specified around SUS304 stainless steel.

If your application requires a specific stainless steel grade, please specify it in your RFQ.

5. Can you provide 6007Z in different clearance classes?

Yes. Clearance can be discussed according to the application. If you require CN, C3 or another specification, please include it in your inquiry.

6. Can you supply 6007ZZ instead of 6007Z?

Yes. If you need metal shields on both sides, please specify 6007ZZ / 6007-2Z when requesting a quotation.

7. Can you customize the 6007 bearing?

Yes. Depending on the project, we can discuss customized material, clearance, lubrication, cage, shielding, packaging and other specifications.

For major dimensional modifications, please send a drawing or sample for technical evaluation.

8. Can you manufacture according to our drawing?

Yes. OEM projects can be reviewed based on a 2D drawing, 3D CAD file, sample or detailed specification sheet.

9. Do you accept small orders?

Prototype and small-batch orders can be discussed. MOQ depends on the material, customization requirements and production quantity.

10. Can you provide samples?

Yes. Samples can be arranged for new OEM projects so customers can verify fit, dimensions and application performance before placing a larger order.

11. Can you provide material or inspection documents?

Documentation requirements can be discussed before production. If your purchasing department requires specific material or inspection documentation, please include the requirements when requesting a quotation.

12. What information should I send for a quotation?

The fastest way is to send:

Bearing model + quantity + material requirement + shield/seal requirement + application + drawing or specifications.

If you are looking specifically for SUS304 6007Z, simply send the required quantity and application. We can confirm the available specification and quotation accordingly.

Request a Quote for SUS304 6007Z

Need a stainless steel 6007Z bearing for an OEM application?

Send us your quantity, drawing, sample or application requirements.

We can review your requirements for a SUS304 stainless steel 6007Z deep groove ball bearing and discuss the appropriate configuration for your application.

OEM / ODM · Custom Specifications · Sample Orders · Volume Production

Request a quotation today.
