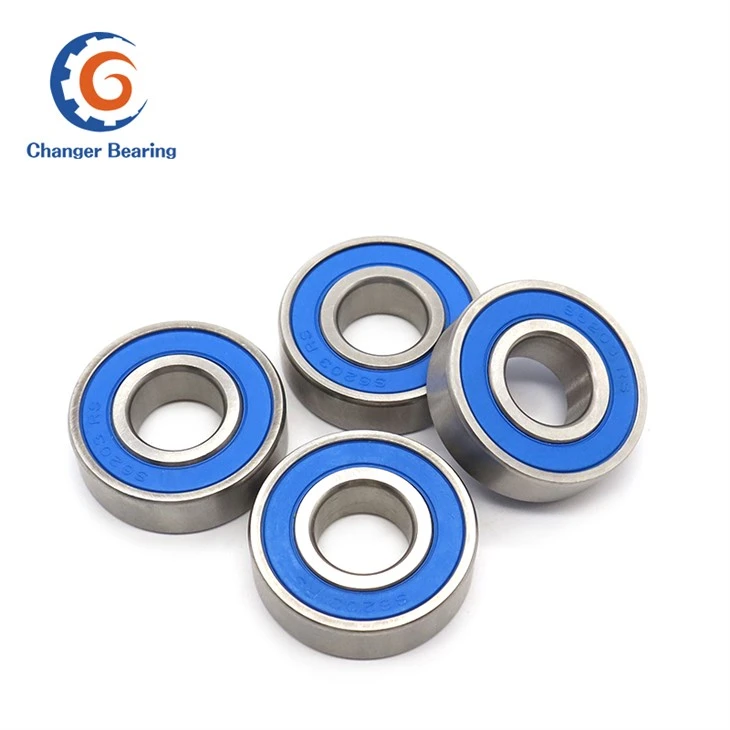

Custom Blue Sealed SUS304 Bearing
Custom Blue Sealed SUS304 Stainless Steel Ball Bearing – 6200 Series
Custom 6200 Series stainless steel ball bearings with blue sealing covers, manufactured from SUS304 stainless steel for OEM equipment, machinery and application-specific assemblies.
This custom SUS304 stainless steel ball bearing combines the standard 6200 series bearing design with a custom blue sealing cover.
The blue seal provides a distinctive appearance while helping protect the internal bearing components from dust, moisture and other contaminants. The bearing can be supplied in different 6200 series sizes and customized according to the customer's requirements for bore diameter, outer diameter, width, sealing configuration, clearance, lubrication and packaging.
For OEM projects, the blue sealing cover can also be specified according to the required color, material, sealing structure and appearance.
If you are looking for a stainless steel bearing that is different from a standard catalog product, send us your drawing, sample or specifications. We can develop the bearing around your actual application.
Key Features
- SUS304 stainless steel bearing material
- 6200 series deep groove ball bearing
- Custom blue sealing cover
- Improved protection against dust and environmental contaminants
- Corrosion-resistant stainless steel construction
- Smooth and reliable rotational performance
- Multiple 6200 series sizes available
- Custom seal color and sealing configuration
- Custom internal clearance and lubrication
- OEM / ODM manufacturing available
- Suitable for prototypes, small batches and volume production
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Deep Groove Ball Bearing |
| Bearing Series | 6200 Series |
| Material | SUS304 Stainless Steel |
| Seal / Cover | Blue Sealing Cover |
| Seal Color | Blue / Customized |
| Seal Configuration | Single or Double Side, Customized |
| Bore Diameter | According to 6200 Series Model |
| Outside Diameter | According to 6200 Series Model |
| Bearing Width | According to 6200 Series Model |
| Internal Clearance | CN / C3 / Customized |
| Lubrication | Grease / Customized |
| Cage | Customized according to application |
| Precision | Standard / Customized |
| Surface Finish | Customized |
| Packaging | Standard / OEM Packaging |
| Production | Sample / Small Batch / Mass Production |
| OEM Service | Available |
Note: The 6200 series includes multiple bearing sizes. The final dimensions, seal configuration and material specifications should be confirmed according to the selected model and application.

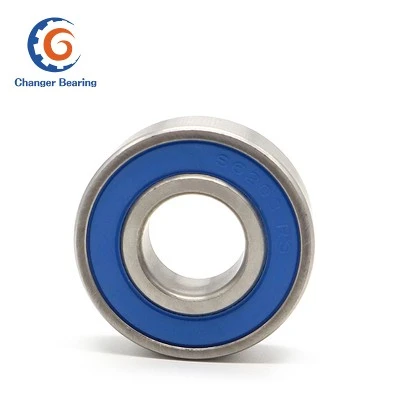

Custom Blue SUS304 Bearing
Custom Blue Sealing Cover
The blue sealing cover is one of the main customization features of this bearing.
Instead of using a standard black or metal shield, the bearing can be supplied with a blue sealing cover according to the customer's product design.
This can be useful for OEM equipment manufacturers that want to:
- Match the bearing to the machine's color scheme
- Visually distinguish different bearing specifications
- Identify different lubrication or application versions
- Create a consistent OEM product appearance
- Improve product recognition during assembly
The blue color can be discussed according to the customer's requirements.
For large OEM projects, customers can provide a color reference, sample or specified color standard for evaluation.
6200 Series Bearing Sizes
The 6200 series covers a range of standard deep groove ball bearing sizes.
Common models include:
| Model | Bore | Outside Diameter | Width |
|---|---|---|---|
| 6200 | 10 mm | 30 mm | 9 mm |
| 6201 | 12 mm | 32 mm | 10 mm |
| 6202 | 15 mm | 35 mm | 11 mm |
| 6203 | 17 mm | 40 mm | 12 mm |
| 6204 | 20 mm | 47 mm | 14 mm |
| 6205 | 25 mm | 52 mm | 15 mm |
| 6206 | 30 mm | 62 mm | 16 mm |
| 6207 | 35 mm | 72 mm | 17 mm |
| 6208 | 40 mm | 80 mm | 18 mm |
| 6209 | 45 mm | 85 mm | 19 mm |
| 6210 | 50 mm | 90 mm | 20 mm |
These are standard reference dimensions. The actual product specification should be confirmed based on the selected bearing model.
Why Choose a Custom Blue SUS304 Bearing?
For many OEM applications, the bearing itself is only one part of the product design.
The purchasing team may also need to control:
Material + seal + color + clearance + lubrication + packaging + dimensional consistency.
An off-the-shelf bearing may meet the basic dimensions but not the complete specification.
Our customized solution allows you to specify the important details before production.
Standard Bearing
- Standard material
- Standard seal color
- Fixed configuration
- Limited customization
- Generic packaging
Custom SUS304 Blue Seal Bearing
- SUS304 stainless steel
- Custom blue seal
- Customized sealing configuration
- Custom clearance
- Custom lubrication
- OEM packaging
- Application-specific requirements
FAQ
1. Can you provide OEM or private label service?
Yes. We can customize the bearing, packaging, labels and branding according to your requirements.
2. Can I order different 6200 series models together?
Yes. Mixed models can be supplied in the same order, subject to MOQ.
3. Can the blue sealing cover be customized?
Yes. Seal color, material and single/double sealing configurations can be customized for OEM projects.
4. What is the MOQ?
MOQ depends on the bearing model and customization requirements. Contact us for a specific quotation.
5. Can you provide samples?
Yes. Samples are available for testing and approval before mass production.
6. Can you manufacture according to our drawing?
Yes. We accept 2D drawings, CAD files, samples or detailed specifications.
7. Can you provide customized packaging?
Yes. OEM packaging with your logo, labels, part numbers and barcodes is available.
8. How can I get a quotation?
Send us the bearing model, quantity, SUS304 material requirement, seal specification and any customization details. Our team will review your requirements and provide a quotation.
Request a Custom Blue SUS304 Bearing Quote
Looking for a 6200 series stainless steel bearing with a custom blue sealing cover?
Send us your bearing model, quantity, drawing or application requirements.
We can review your requirements for a SUS304 stainless steel 6200 series ball bearing with a customized blue seal, including the bearing size, sealing configuration, clearance, lubrication and OEM packaging.
SUS304 Stainless Steel · Custom Blue Seal · 6200 Series · OEM / ODM · Custom Manufacturing
Send us your bearing requirements and let us develop the specification around your application.
