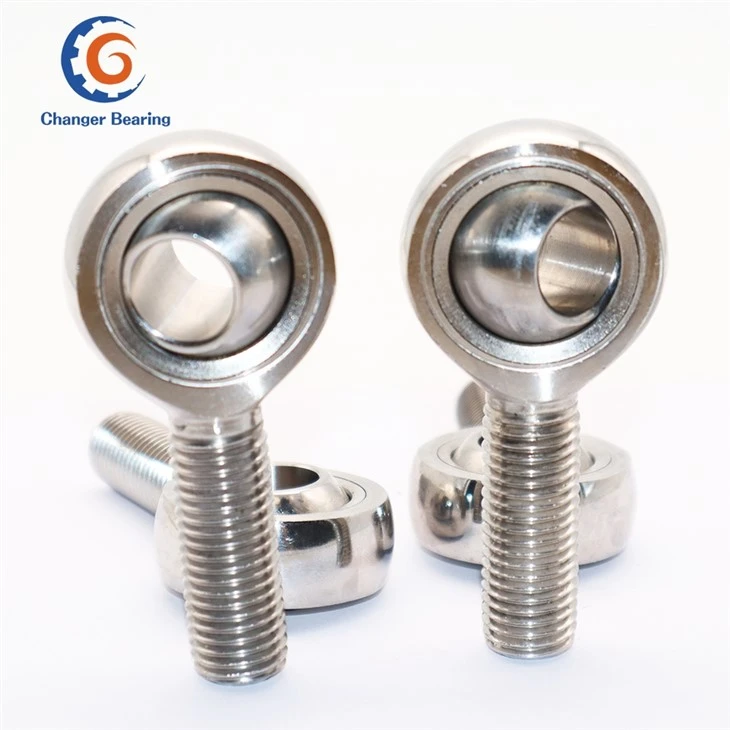

Ball Joint Rod End Bearing SA16TK

Ball Joint Rod End Bearing SA16TK is a precision-engineered spherical rod end bearing designed for mechanical linkage systems requiring reliable load transmission, angular compensation, and smooth movement.
Featuring a high-strength steel body and precision-machined spherical structure, the SA16TK provides stable performance, reduced friction, and improved alignment capability under continuous operating conditions.
It is widely used in hydraulic cylinders, automation equipment, construction machinery, and industrial motion systems requiring durable and reliable connection components.

Self-Aligning Spherical Design
The spherical sliding structure allows angular movement between connected components, compensating for installation deviation and operational misalignment.
High Load Carrying Capability
The optimized internal structure provides stable load transmission performance for continuous mechanical operation.
Low Friction Movement
The precision spherical contact surface supports smooth oscillating movement and reduces friction during repeated operation.
Durable Surface Protection
The surface-treated steel body provides improved corrosion resistance and enhances service life under industrial working conditions.
Accurate Thread Connection
The precisely machined threaded shank ensures secure installation and reliable connection with mechanical assemblies.

High Strength Rod Body
Manufactured from selected steel materials to provide reliable mechanical strength and stable load transmission capability while precision machining ensures accurate thread dimensions.
Spherical Inner Ball
Precision-ground spherical ball enables smooth angular movement and improves alignment capability during operation.
PTFE Sliding Liner
Composite sliding liner reduces friction between contact surfaces and supports stable movement with reduced maintenance requirements.
Protective Surface Coating
Surface treatment improves corrosion resistance and provides additional protection for industrial environments.

Spherical Sliding Mechanism
Operates through a spherical sliding mechanism that allows rotational and angular movement between connected components.
Force Adjustment and Stability
Enables the bearing to adjust to different movement angles under external forces while maintaining mechanical connection stability.
Stress Reduction and Reliability
Minimizes additional stress caused by misalignment compared with fixed connection components, improving the operating reliability of the complete mechanical system.

Material Selection and Inspection
Raw materials are carefully selected and inspected before production to ensure mechanical properties, material consistency, and stable product quality.
Precision CNC Machining
Advanced CNC machining equipment is used to process the rod body, threaded section, and bearing components to ensure proper dimensional tolerance.
Heat Treatment
Specialized heat treatment processes improve material strength, wear resistance, and structural stability.
Surface Finishing
Surface treatment improves corrosion resistance and enhances the durability of the bearing during industrial operation.
Assembly and Final Inspection
Each bearing undergoes assembly inspection, dimensional verification, and functional checks before shipment.

Dimensional Inspection
Critical dimensions including bore diameter, thread accuracy, external dimensions, and component fit are inspected according to manufacturing requirements.
Material Verification
Material specifications are checked to ensure product consistency and mechanical reliability.
Surface Quality Inspection
Surface finish, coating condition, and overall appearance are inspected before delivery.
Functional Performance Testing
Bearing movement, assembly accuracy, and operational performance are evaluated to ensure reliable usage.
Batch Traceability
Production records enable batch identification and quality tracking for consistent supply management.

Hydraulic Cylinder Systems
Commonly used in hydraulic cylinder connection points requiring angular compensation and reliable force transmission.
Automation Equipment
Suitable for robotic systems, industrial automation machinery, and precision mechanical positioning equipment.
Construction Machinery
Applied in heavy-duty equipment requiring strong mechanical joints and stable movement performance.
Agricultural Machinery
Used in mechanical linkage systems requiring durability and reliable operation.
Industrial Motion Systems
Suitable for various mechanical assemblies involving oscillating movement and alignment adjustment.

Customized Thread Sizes
Thread specifications can be tailored to match specific machinery requirements.
Special Dimensional Requirements
Adjustments to bore diameter, shank length, and overall geometry based on technical drawings.
Alternative Materials
Selection of specialized steel grades or corrosion-resistant alloys for demanding environments.
Different Surface Treatments
Application of specific coatings for enhanced environmental protection.
Modified Load Capacity
Engineering adaptations to meet higher static or dynamic load parameters.
OEM Production Support
Manufacturing based on customer-provided engineering drawings or physical samples.
Customized Packaging Solutions
Tailored labeling, bulk configurations, or specialized protective packaging for international shipping.

Individual Protective Packaging
Each bearing is wrapped individually to prevent surface damage and contamination during transit.
Export Standard Cartons
Packaged in sturdy corrugated boxes designed to withstand international shipping conditions.
Bulk Packaging Options
Efficient bulk configurations available for high-volume manufacturing assembly lines.
Customized Labeling
Clear product identification, barcode labeling, and shipping marks applied according to specifications.
Pallet Packaging
Secure palletization and wrapping for large shipments to ensure safe handling and transport.
