Stainless Steel SS304 Rod End Bearing SA16TK
M16 Male Thread Stainless Steel Rod End
SA16TK is a 16 mm male rod end with an M16 × 2.0 thread. The stainless steel version is made for equipment where the rod end may be exposed to water, humidity or outdoor conditions.
The standard size is easy to identify: 16 mm bore, 42 mm head diameter and 21 mm bearing width. The overall length is about 87 mm.
Specification
| Item | Details |
|---|---|
| Model | SA16TK |
| Type | Male Rod End |
| Bore | 16 mm |
| Thread | M16 × 2.0 |
| Thread Direction | Right Hand |
| Head Diameter | 42 mm |
| Bearing Width | 21 mm |
| Overall Length | Approx. 87 mm |
| Body Material | Stainless Steel 304 |
| Lubrication | Self-Lubricating Type |
| Weight | Approx. 0.21 kg |
SS304 Body
The main reason to choose this version is the stainless steel body.
A zinc-plated steel rod end can work well in normal machinery. It is a different situation when the part is installed outside or around water. SS304 gives the housing better resistance to normal moisture and surface corrosion.
It should not, however, be treated as a guarantee against rust in salt water or chemical environments. For those conditions, the material and actual working environment should be checked together.
Before You Order
For SA16TK replacement, the model number alone is not always enough.
Please check:
16 mm bore
M16 × 2.0 thread
Right-hand or left-hand thread
42 mm head diameter
21 mm width
Overall length
Stainless steel body
There is also an M16 × 1.5 version in the SA16 family. It looks similar but has a different thread pitch, so this point is worth confirming before ordering.
Supply for Replacement and OEM
We supply SA16TK for machine repair, distributor stock and OEM projects.
If you are replacing an existing part, you can send:
Part number + quantity + photo
If the part number is unknown, send the main dimensions instead. We can check the model from the drawing or sample.
Left-hand thread is also available. The left-hand version is normally marked SAL16TK.
FAQ
What is the thread size of SA16TK?
The standard SA16T/K uses an M16 × 2.0 male thread. An M16 × 1.5 version is also available, so the pitch should be confirmed when replacing an existing part.
Is the whole bearing made from SS304?
The stainless version uses SS304 for the rod end body. The material of the ball or inner ring can depend on the specific construction, so the full material requirement should be stated in an RFQ.
Can I use SA16TK instead of a normal steel SA16T/K?
If the dimensions and thread are the same, it may be used as a replacement. The main difference is the body material. Check the load and operating conditions before making the change.
What is the difference between SA16TK and SAL16TK?
The basic size is the same. The main difference is the thread direction. SA16TK is normally right-hand, while SAL16TK is left-hand.
Can you quote SA16TK by sample?
Yes. A sample is useful when the original marking is missing or when the buyer needs to match an existing part.
What should be included in a bulk order inquiry?
Quantity, thread direction, material requirement and any drawing or brand requirement are enough for us to start checking the order.

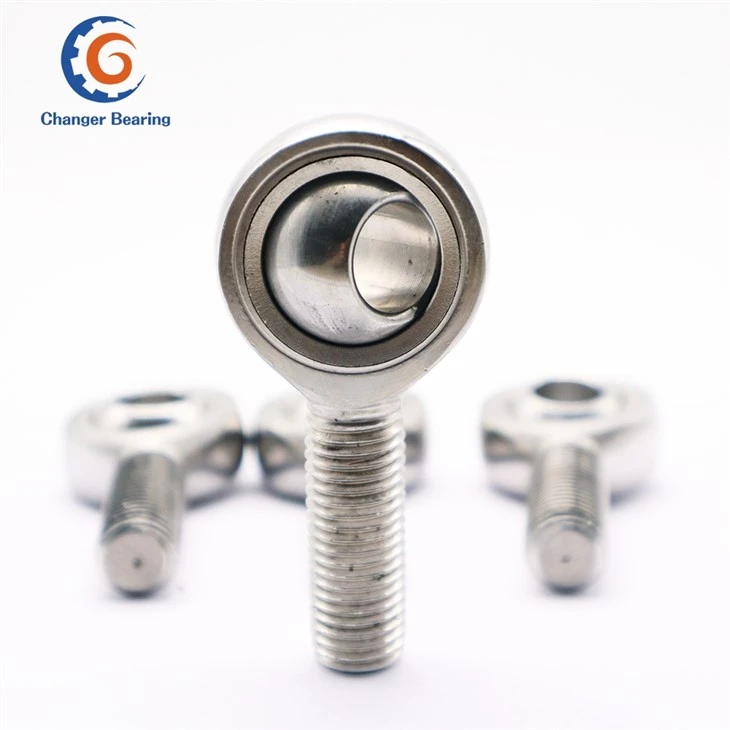

Products Pictures
